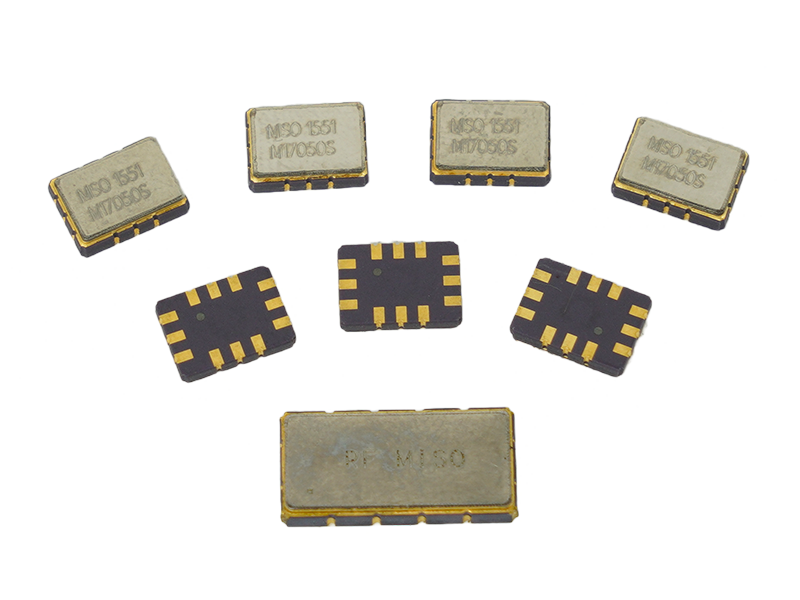

SAW FILTER
| No | C.F. | Model | Type | Impedance | B/W | I/L | R/L | Attenuation | Dimention | Data |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 38MHz | M038005S | IF SAW BPF | 50Ohm | 0.3MHz | 11.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm |  |
| 2 | 38MHz | M038005S_U01 | IF SAW BPF | 50Ohm | 0.3MHz | 11.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 3 | 38MHz | M038010S | IF SAW BPF | 50Ohm | 0.58MHz | 14.5dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 4 | 38MHz | M038010S_U01 | IF SAW BPF | 50Ohm | 0.6MHz | 13.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 5 | 55MHz | M05506S | IF SAW BPF | 50Ohm | 13MHz | 6.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 6 | 55MHz | M05503S | IF SAW BPF | 50Ohm | 16MHz | 3.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 7 | 63MHz | M06306S | IF SAW BPF | 50Ohm | 11MHz | 6.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 8 | 63MHz | M06303S | IF SAW BPF | 50Ohm | 14MHz | 3.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 9 | 65MHz | M065011S | IF SAW BPF | 50Ohm | 0.78MHz | 14dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 10 | 70MHz | M070018S | IF SAW BPF | 50Ohm | 0.18MHz | 13.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 11 | 70MHz | M07002S | IF SAW BPF | 50Ohm | 0.22MHz | 9.0dB | 15dB | Refer to the attached spec | 20x9.8x1.8mm | |
| 12 | 70MHz | M07001S | IF SAW BPF | 50Ohm | 0.74MHz | 12.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 13 | 70MHz | M070006S | IF SAW BPF | 50Ohm | 0.88MHz | 14.5dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 14 | 70MHz | M070008S | IF SAW BPF | 50Ohm | 1MHz | 14.5dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 15 | 70MHz | M070019S | IF SAW BPF | 50Ohm | 1.52MHz | 13.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 16 | 70MHz | M070015S | IF SAW BPF | 50Ohm | 1.7MHz | 13.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 17 | 70MHz | M070028S | IF SAW BPF | 50Ohm | 2.8MHz | 15.0dB | 15dB | Refer to the attached spec | 20x9.8x1.8mm | |
| 18 | 70MHz | M07003S | IF SAW BPF | 50Ohm | 3MHz | 13.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 19 | 70MHz | M07004S | IF SAW BPF | 50Ohm | 3.79MHz | 10.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 20 | 70MHz | M07005S | IF SAW BPF | 50Ohm | 4.69MHz | 11.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 21 | 70MHz | M070052S | IF SAW BPF | 50Ohm | 4.7MHz | 15.5dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 22 | 70MHz | M07006S | IF SAW BPF | 50Ohm | 6MHz | 11.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 23 | 70MHz | M07023S | IF SAW BPF | 50Ohm | 1.91MHz | 10.0dB | 15dB | Refer to the attached spec | 20x9.8x1.8mm | |
| 24 | 70MHz | M07025S | IF SAW BPF | 50Ohm | 2.24MHz | 9.0dB | 15dB | Refer to the attached spec | 20x9.8x1.8mm | |
| 25 | 70MHz | M07028S | IF SAW BPF | 50Ohm | 27.8MHz | 20.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 26 | 70MHz | M07030S | IF SAW BPF | 50Ohm | 2.9MHz | 2.9dB | 15dB | Refer to the attached spec | 20x9.8x1.8mm | |
| 27 | 70MHz | M07070S | IF SAW BPF | 50Ohm | 6.7MHz | 12.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 28 | 74.93MHz | M074061S | IF SAW BPF | 50Ohm | 5.34MHz | 16.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 29 | 75MHz | M07501S | IF SAW BPF | 50Ohm | 1.11MHz | 13.5dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 30 | 75MHz | M075019S | IF SAW BPF | 50Ohm | 1.5MHz | 12.5dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 31 | 75MHz | M075015S | IF SAW BPF | 50Ohm | 1.7MHz | 13.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 32 | 75MHz | M07502S | IF SAW BPF | 50Ohm | 2.36MHz | 15.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 33 | 75MHz | M075030S | IF SAW BPF | 50Ohm | 3.25MHz | 15.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 34 | 121MHz | M12104S | IF SAW BPF | 50Ohm | 2.7MHz | 2.5dB | 15dB | Refer to the attached spec | 7x5x1.85mm | |
| 35 | 156MHz | M15621S | IF SAW BPF | 50Ohm | 22.2MHz | 15.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 36 | 156MHz | M15647S | IF SAW BPF | 50Ohm | 45.47MHz | 15.0dB | 15dB | Refer to the attached spec | 7x5x1.85mm | |
| 37 | 170MHz | M17050S | IF SAW BPF | 50Ohm | 50.8MHz | 16.2dB | 15dB | Refer to the attached spec | 7x5x1.85mm | |
| 38 | 170MHz | M17053V | IF SAW BPF | 50Ohm | 53.5MHz | 21.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 39 | 172.8MHz | M17828S | IF SAW BPF | 50Ohm | 25.14MHz | 14.0dB | 15dB | Refer to the attached spec | 5x5x1.3mm | |
| 40 | 175MHz | MBP-175BP01MS | IF SAW BPF | 50Ohm | 0.098MHz | 8.0dB | 15dB | Refer to the attached spec | 13X6.5X2mm | |
| 41 | 243MHz | M24301S | IF SAW BPF | 50Ohm | 6MHz | 2.5dB | 15dB | Refer to the attached spec | 5x5x1.3mm | |
| 42 | 300MHz | M30006S | IF SAW BPF | 50Ohm | 70MHz | 0.9dB | 15dB | Refer to the attached spec | 7x5x1.85mm | |
| 43 | 300MHz | M30014S | IF SAW BPF | 50Ohm | 11.62MHz | 14.0dB | 15dB | Refer to the attached spec | 7x5x1.85mm | |
| 44 | 390MHz | M39010S | IF SAW BPF | 50Ohm | 10MHz | 4.0dB | 15dB | Refer to the attached spec | 5x5x1.3mm | |
| 45 | 780.5MHz | MSA-C780.5_45MD-A-R0 | RF SAW BPF | 50Ohm | 45MHz | 4.5dB | 2.5:1 | Refer to the attached spec | 3x3x1.4mm | |
| 46 | 806MHz | MSA-C806_30MD-A-R0 | RF SAW BPF | 50Ohm | 30MHz | 4.5dB | 2.5:1 | Refer to the attached spec | 3x3x1.4mm | |
| 47 | 942.5MHz | MSA-C942.5_35MD-A-R0 | RF SAW BPF | 50Ohm | 35MHz | 3.0dB | 2.7:1 | Refer to the attached spec | 3x3x1.4mm | |
| 48 | 1842.5MHz | MSA-C1842.5_75MD-A-R0 | RF SAW BPF | 50Ohm | 75MHz | 3.8dB | 2.1:1 | Refer to the attached spec | 3x3x1.4mm | |
| 49 | 2140MHz | MSA-C2140_60MD-A-R0 | RF SAW BPF | 50Ohm | 60MHz | 3.5dB | 2.2:1 | Refer to the attached spec | 3x3x1.4mm | |
| 50 | 2350MHz | MSA-C2350_100MD-A-R0 | RF SAW BPF | 50Ohm | 100MHz | 4.0dB | 2.5:1 | Refer to the attached spec | 3x3x1.4mm | |
| 51 | 2595MHz | MSA-C2595_50MD-A-R0 | RF SAW BPF | 50Ohm | 50MHz | 3.8dB | 2.1:1 | Refer to the attached spec | 3x3x1.4mm | |
| 52 | 2655MHz | MSA-C2655_70MD-A-R0 | RF SAW BPF | 50Ohm | 70MHz | 3.6dB | 2.5:1 | Refer to the attached spec | 3x3x1.4mm | |
